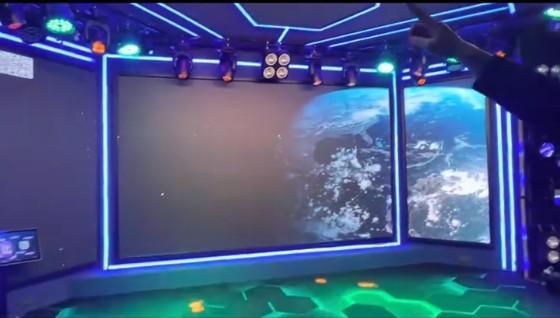

Overview of Entertainment Live Room Lighting Project:

The lighting project of Youyouming Live Streaming Cultural Communication Co., Ltd., fully constructed by Shengmang Lighting, is located in a 60 square meter double decker stage live streaming room in Changchun, Jilin, specifically designed for 6-8 person group broadcasting scenes. The project has a duration of 20 days and a budget of 80000 yuan. Through the intelligent lighting system and professional level equipment configuration, it achieves dynamic light and shadow linkage among multiple machine positions, meets the needs of variety show live streaming, and fully empowers enterprise digital content production.

Integrated Design Concept of CAD Space Sound and Light in Live Streaming Room

Based on the dual stage polygon layout characteristics, Shengmang Lighting uses AutoCAD 2024 for 3D spatial optical simulation:

1. Use DiaLux optical software to calculate the reflection coefficient and configure 12 sets of diffuse reflection auxiliary light sources to eliminate facial shadows of the anchor

2. Innovate the topology structure of the "dual ring light array", with a 3-layer adjustable light range (0-120 °) on the main stage and 270 ° surround lighting on the secondary stage

3. Intelligent DMX512 control system integration, preset 6 lighting effect scene memory modes, supports real-time infinite dimming during live streaming

Professional level lighting configuration matrix (total power 12.6KW)

|Equipment type | quantity | functional characteristics | application scenarios|

|----------------|------|---------------------------------------|--------------------------|

|200 watt beam light | 6 units | 25W RGBW mixed color, 0.5 ° sharp cutting | fixed-point character tracking light|

|18 PA lights | 4 units | 95CRI display, 3200-5600K color temperature adjustment | Basic surface light supplement|

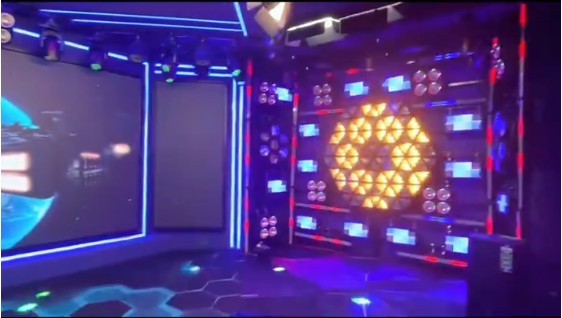

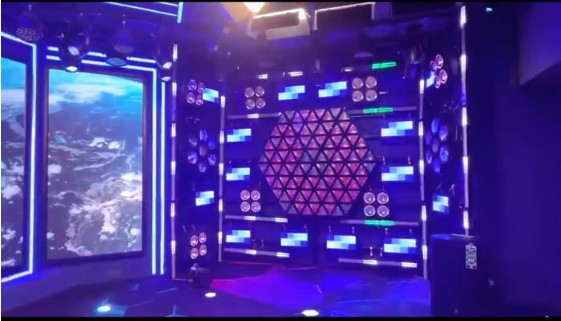

|LED triangular matrix background light | 6 groups | Honeycomb lens+soft film, 120 ° wide-angle coverage | Uniform wall cleaning for the background wall|

|Eight stage strobe lights | 14 units | 0.1ms response speed, supporting music rhythm synchronization | visual impact during climax|

|Four eye burst array | 8 groups | 20000 lumens instantaneous brightness, four-way strobe combination | Dance action enhancement|

|1206 long strip strobe lights | 26m | 16 million colors to choose from, IP65 protection level | floor light strip&ceiling outline

|7 circular retro background lights | 2 units | 2200K warm light simulation, adjustable flashing frequency | Creating a nostalgic scene atmosphere|

Immersive Light and Shadow Experience System

After installation and debugging, the live broadcast room will present three levels of visual dimensions:

1. Basic lighting effect layer: Through a 98% uniformity surface lighting system, the brightness discontinuity when two people are in the same frame is eliminated, ensuring that the illumination within a 10 meter depth of field is maintained at 1500 ± 50Lux

2. Dynamic interaction layer: The intelligent light control panel can analyze the rhythm of live BGM in real time and automatically trigger a 0.01 second delayed strobe burst matrix linkage effect

3. Environmental atmosphere layer: The long strip matrix light supports HSV color space programming and can generate gradient color temperature halos, which can be used in conjunction with smoke machines to create a sense of depth in the space

Shengmang Lighting Technology Guarantee provides a three-year full cycle service:

72 hour emergency response mechanism

Monthly remote lighting system diagnosis

Quarterly on-site optical parameter calibration

Annual equipment light decay detection replacement
