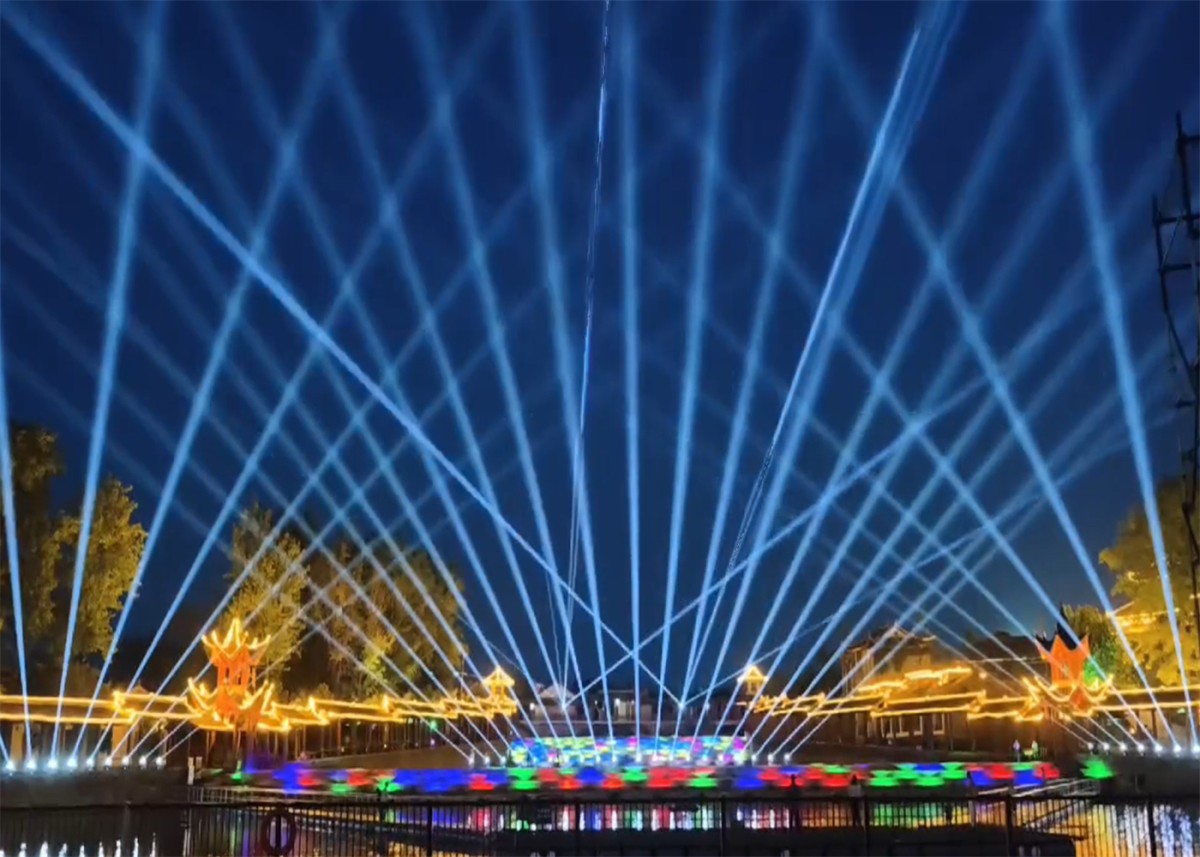

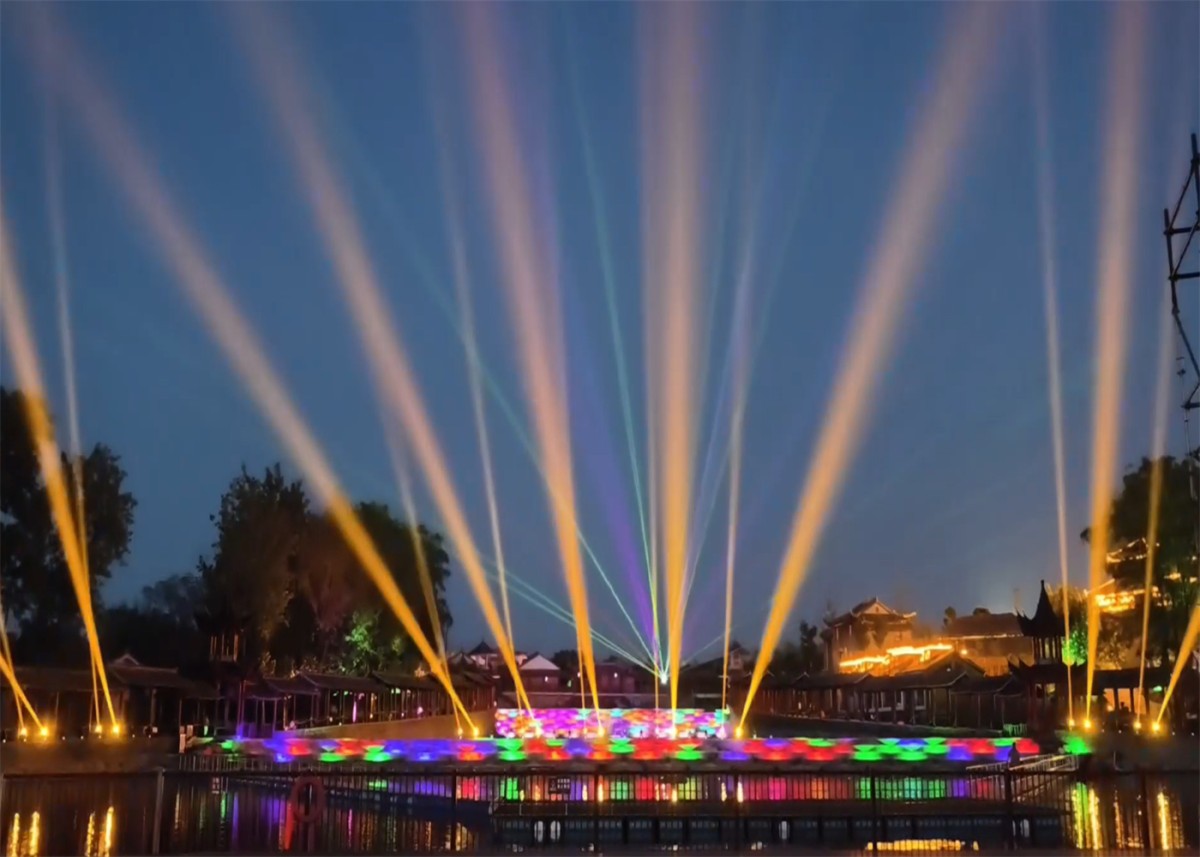

The Dabie Mountain Laogang Kiln Scenic Area relies on the 800 year old pottery culture relics and is revitalized by Shengmang Lighting Technology. The Ming and Qing Dynasty ancient architecture complex, covering an area of 68000 square meters, perfectly collides the ancient charm of blue bricks and gray tiles with the cyberpunk style light network through the precise lighting of 40 JC-380XPRO waterproof beam lights and 4 JC-LS30 full-color laser lights, creating a "walking light and shadow museum".

The scenic area at night is transformed into:

Architectural Outline: A three-dimensional line book outlined by warm gold beams

Skyline: Digital kiln fire woven with cold blue laser

Water Theater: Colorful Ceramic Souls Leaping in Reflection

2、 Decoding of core lighting system technology

1. Architectural light carving system (40 JC-380 beam lights)

Layout strategy: 8 sets of array distribution, covering 12 buildings including the main hall, ancient kiln, and long corridor

Technical parameters: 380W light source, 16 ° ultra narrow beam angle, IP65 waterproof

Light and Shadow Logic:

3000K warm gold light projected at a 75 ° angle, accurately carving the eaves tenon and mortise structure

RGBW color mixing system achieves gradient color temperature of building facades (2700K → 4000K)

Dynamic tracking program simulates "kiln fire circulation", with a beam scanning speed of 0.5 °/s

2. Sky Light Network System (4 JC-30 watt laser lights)

Space shaping: 4 sets of devices are distributed in a diamond matrix, covering a 200 × 200m canopy

Technological breakthrough:

30W full-color laser output, 16 bit color depth presenting 12 cultural chromatograms including celadon, Jun kiln, Tang Sancai, etc

25 beam recombination per second, forming a dynamic optical network at an altitude of 80 meters

The intelligent atomization system extends the visible distance of the light track to 3 kilometers

3. Light and shadow linkage black technology

Water feature system: Laser beam is projected onto the lake surface at a 17 ° incident angle, and the optical network density is synchronously adjusted through a ripple sensor

Color Script:

Architectural complex: Constant 3000K warm gold anchoring historical sense

Forest area: RGB beam periodic sweeping (period of 30s)

Sky layer: Laser real-time generation of cultural symbols (pottery patterns/ancient seal script/kiln texture)

3、 Four dimensional spatial visual shock decomposition

1. Vertical Shock: Ladder of Light

40 beam lights form a 25 ° cross light curtain along the axis from the bell tower to the drum tower

The visual spectacle of the "Ice Fire Nine Heavens" is composed of a cold blue laser network and a warm gold architectural belt

Data highlights:

Single beam luminous flux: 120000 lumens

Light dark contrast ratio: 100000:1

Color reproduction index: Ra>92

2. Horizontal Narrative: Time Corridor

7 major light and shadow chapters in tourist flow design:

The beam of light spirals up from the ground, simulating the rotation of a ceramic wheel

【 Quenching Tool 】 The laser mesh gradually turns reddish brown, and the temperature is visualized

[Green Charm Flowing Fragrance] Dynamic Reflection Generation on the Water Surface "Ceramic Chart"

[Time Space Folding] Building Projection and Laser Network Overlay to Create the Illusion of Cyber Ancient Kiln

3. Immersive Details: Micro Aesthetics

The beam projects miniature ceramic patterns (single pattern size 5 × 5cm) onto the green brick wall surface

Laser generates interactive stepping 'virtual clay' on stone pavement

Fountain Water Curtain and Laser Real time Drawing of 3D Ceramic Manufacturing Process Diagram (Resolution 7680 × 4320)

4、 Complete Record of Tourist Sensory Revolution

1. Color shock wave

Aesthetics of Cold Warm Collision:

Building complex 3000K warm gold vs laser net 6500K cold blue

Color temperature difference of up to 3500K, enhancing spatial depth perception

Dynamic chromatographic logic:

Cycle the "ceramic chromatography" every 15 minutes: take soil brown (# 6E3B24) → refine clay ash (# 808080) → plain white (# F5F5DC) → glazed green (# 4B9F7A)

2. Scale game

Macro shock:

The "Sky Tower" composed of 40 beams of light is clearly visible from 3 kilometers away

Micro Surprise:

Micro projection reproduction of ceramic illustration from "Tian Gong Kai Wu" in brick crevices (to be captured using macro mode on a mobile phone)

3. Five senses synergy

Vision: Pupil naturally scales with the rhythm of beam scanning (brightness gradient rate 3cd/m ² · s)

Hearing: Laser motion frequency forms acousto-optic resonance with ancient bell music (44.1kHz sampling rate)

Physical sensation:

The perceived temperature near the laser mesh area decreases by 1.5 ℃ (psychological cooling effect)

Enhancing perceived warmth through infrared radiation in building projection areas

5、 The hardcore support behind light and shadow

Energy saving system:

The power density of the entire system is only 5.6W/m ², which is 55% more energy-efficient than traditional lighting

Smart operation and maintenance:

Meteorological linkage: Automatically switch waterproof lighting mode in case of rainfall

Flow induction: Automatically adjust the beam angle according to the density of tourists (variable from 15 ° to 45 °)

Environmental certification:

All devices comply with CIE light pollution control standards (UGR<19)

Shengmang Lighting has cast the anchor of history with 40 380W beam lights and opened the window of the future with 4 30W laser lights. When tourists stroll among them, their left hand can touch the temperature of the brick walls dyed by the moonlight of the Ming and Qing dynasties, and their right hand can pick the fruit of light condensed by digital civilization - this is not only a lighting project, but also a time and space dialogue spanning eight hundred years. Amidst the interplay of light and shadow, the pottery soul of the old kiln awakens in the darkness, firing unique memories of light and shadow for each witness.
